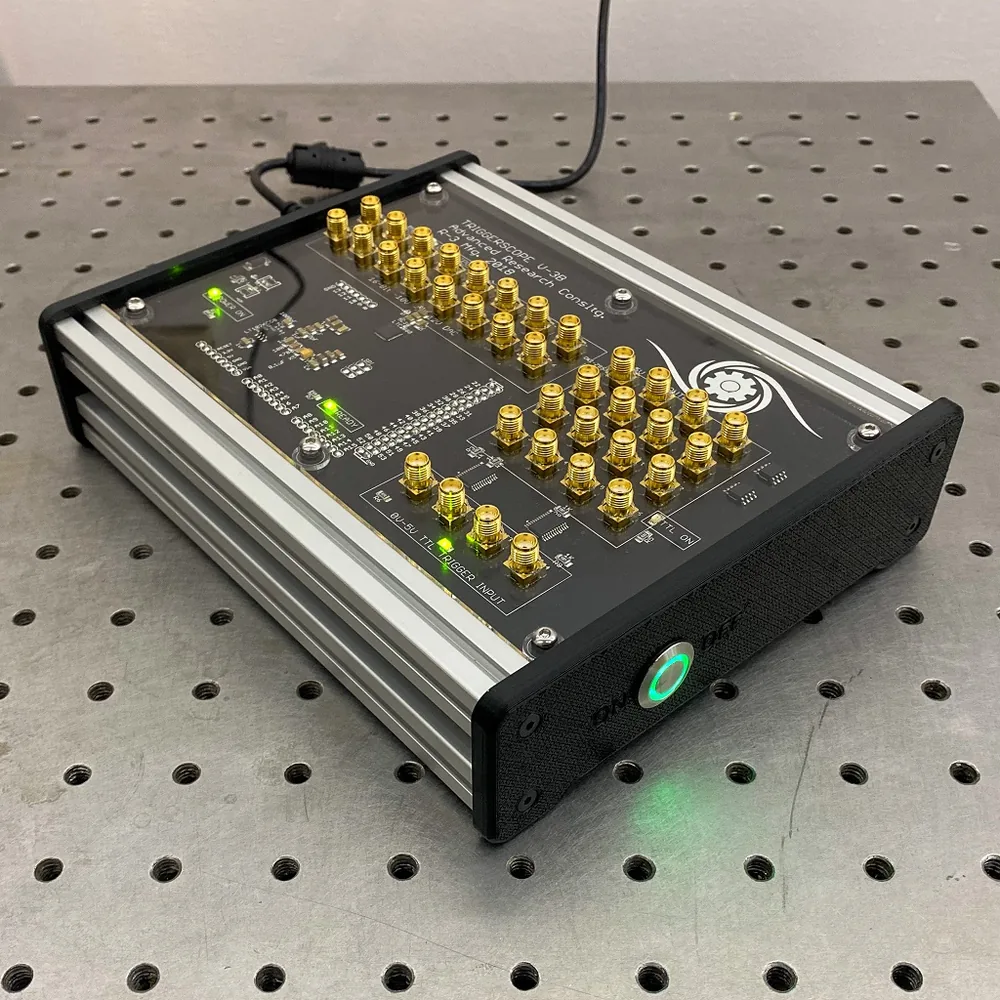

Triggerscope 3B (Refurbished)
High speed multifunction TTL, DAC, I/O controller. Refurbished, with a 1 year warranty.
Was $1,500 Now $1,250Unit price · USD
Most products ship in 1 week. No payment is taken on this site; the requisition hands off to the product page on the ARC store.
Specification · Ref TS3B
Triggerscope 3B (Refurbished), specified.
Description
We have a few Triggerscope 3B units back in stock. These have been re-run through our assembly process, loaded with the latest 3B firmware and tested for performance, and are offered with a 1 year warranty like new units. Stock is limited.
The Triggerscope 3B has been superseded by the Triggerscope 4. For customers who already own the Triggerscope 3B, we are happy to support your product. Please contact us if you are looking for support.
The Triggerscope 3B is a multifunction, sequence-capable high speed TTL I/O and DAC solution for machine vision, microscopy, R&D, metrology and other demanding applications. Using the lessons learned from the Triggerscope 1, 16 and 2 and 3 products, the Triggerscope 3B is the 5th generation of refinement for external device control.
| Description | Spec | Note |
|---|---|---|
| DAC output | -10/+10 VDC | 16-bit resolution @ ±10mA drive |
| DAC channels | 16 | Female SMA connectors |
| TTL output | 0V – 5V DC | -50/+50mA drive |
| TTL channels | 16 | Female SMA connectors |
| Trigger inputs | 4 | Female SMA connectors |
| Switch time | <20µs | TTL & DAC in sequence |
| Driver support | Multiple | Micro-Manager, MetaMorph, MATLAB |
What’s new
- On board LED indication for READY, trigger, output and input lines
- Direct SMA breakouts
- DAC output to -10/+10V
- External power switch
- Dynamic range selection for DAC range: 0-5V, 0-10V, -10/+10V, -2.5/+2.5V
- Faster 80MHz processor
- 3x increase in system memory
- 10x faster TTL switching (12µs absolute max)
- 4x trigger inputs
- New benchtop case design
Applications
- Galvo control
- Piezo & fast focus control
- Laser, LED and AOTF control
- High speed camera triggering
- XY stage control
- Adaptive optics
- Liquid handling / perfusion
- Liquid lenses
- Spinning disk confocal control
- Embedded systems
- OEM integration
- Filter wheels
- Dichroic cube switchers
- Strobe capture
OEM integration options are available including caseless designs, alternative coloring schemes and custom panels. Custom drivers are available, as well as bare development versions for in-house integration options.
