Triggerscope 4
High speed multifunction TTL, DAC, I/O controller.
$3,500Unit price · USD
Most products ship in 1 week. No payment is taken on this site; the requisition hands off to the product page on the ARC store.
Specification · Ref TS4
Triggerscope 4, specified.
Description

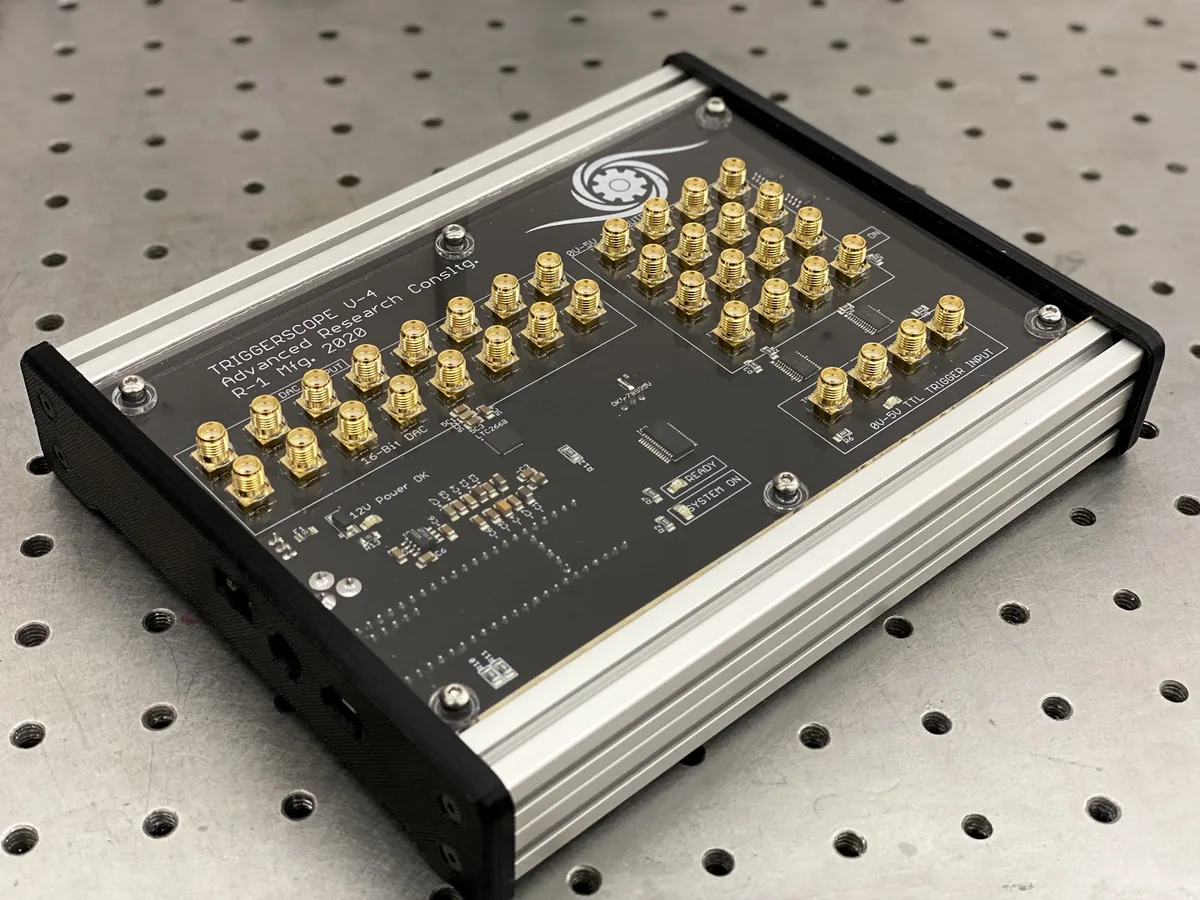

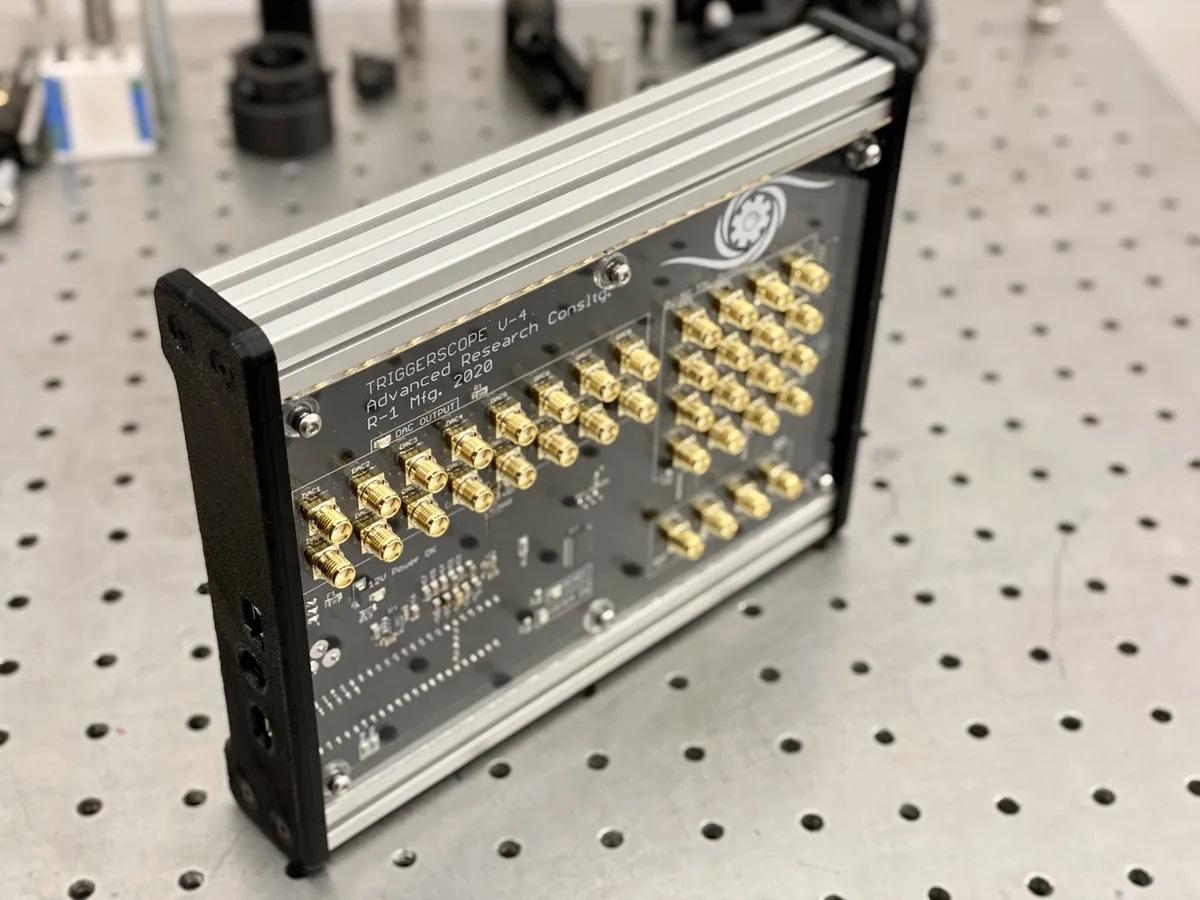

The Triggerscope 4 is a new multifunction, sequence-capable high speed TTL I/O and DAC solution for machine vision, microscopy, R&D, metrology and other demanding applications.
Using the lessons learned from the Triggerscope 1, 16 and 2 & 3 products, the Triggerscope 4 is the 6th generation of refinement for external device control.
| Description | Spec | Note |
|---|---|---|
| DAC output | -10/+10 VDC | 16-bit resolution @ ±40mA drive |
| DAC channels | 16 | Female SMA connectors |
| TTL output | 0V – 5V DC | 200-500mA drive |
| TTL channels | 16 | Female SMA connectors |
| Trigger inputs | 4 | Female SMA connectors |
| Switch time | <10µs | TTL & DAC in sequence |
| Driver support | Multiple | Micro-Manager, MetaMorph, MATLAB, Python 3 |
What’s new
- On board LED indication for READY, trigger, output and input lines
- Direct SMA breakouts
- DAC output to -10/+10V
- External power switch
- Dynamic range selection for DAC range: 0-5V, 0-10V, -10/+10V, -2.5/+2.5V
- Fastest microprocessor available: 600 MHz
- 16GB SD-card memory access
- A new real time clock for better timing over long duration experiments and delays
- DAC update rates can be overclocked, to a maximum frequency of 270kHz
- Integrated and simplified external controls for easier operation
- 4x trigger inputs
Applications
- Galvo control
- Piezo & fast focus control
- Laser, LED and AOTF control
- High speed camera triggering
- XY stage control
- Adaptive optics
- Liquid handling / perfusion
- Liquid lenses
- Spinning disk confocal control
- Embedded systems
- OEM integration
- Filter wheels
- Dichroic cube switchers
- Strobe capture
OEM integration options are available including caseless designs, alternative coloring schemes and custom panels. Custom drivers are available, as well as bare development versions for in-house integration options.
