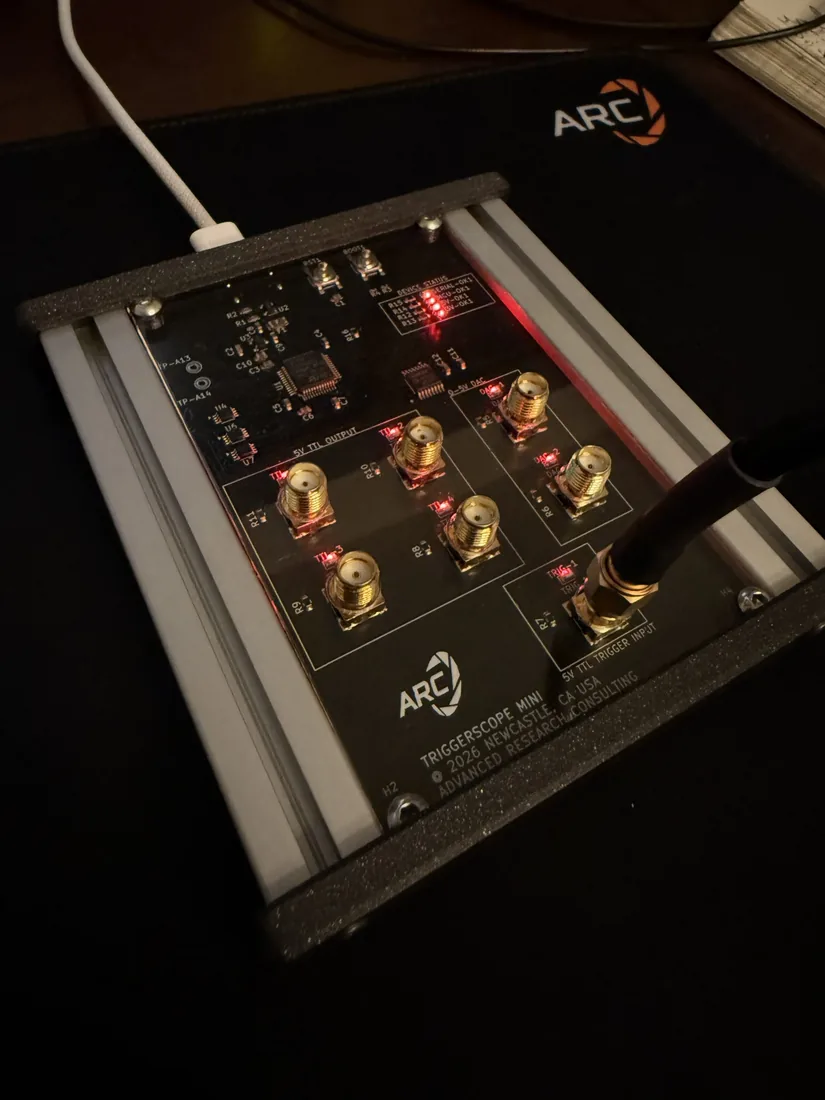

Triggerscope Mini
High speed TTL and DAC controller for microscopy. Includes USB-C cable; no external power supply needed.
$1,500Unit price · USD
Most products ship in 1 week. No payment is taken on this site; the requisition hands off to the product page on the ARC store.
Specification · Ref TS-MINI
Triggerscope Mini, specified.
Description
The TriggerScope Mini brings hardware-timed DAC and TTL control to any microscope at an accessible price.
Native MicroManager compatibility, 2 analog outputs, 4 digital outputs, and a trigger input: professional-grade synchronization in a compact, USB-powered package.
- 1.
MicroManager native
Same driver as the TriggerScope 4. No plugins, no adapters. If your software sees a TriggerScope, it sees the Mini.
- 2.
2-channel 12-bit DAC
Two 0–5V analog outputs. Drive LED controllers, AOTFs, piezo stages with 12-bit precision.
- 3.
4 TTL digital outputs
Level-shifted 5V TTL for camera triggering, shutter control, and device sync. Microsecond timing.
- 4.
Sequencing & blanking
250 programmable states per channel. Trigger-gated blanking protects samples between exposures.
- 5.
Compact & USB-powered
Single USB cable for power and data. No external supply, no rack mount, no bench clutter.
- 6.
Upgrade path to TS4
Transition to TriggerScope 4 (16 DAC + 16 TTL) with zero software changes. Same protocol, same workflow.
| Description | Spec | Note |
|---|---|---|
| Analog outputs | 2 ch, 12-bit (0–5V) | |
| Digital outputs | 4 TTL (5V) | |
| Trigger inputs | 1 | |
| Sequencing | 250 states/ch | Blanking |
| Interface | USB-C | Bus-powered |
| MM driver | Native | Shared with TS4 |

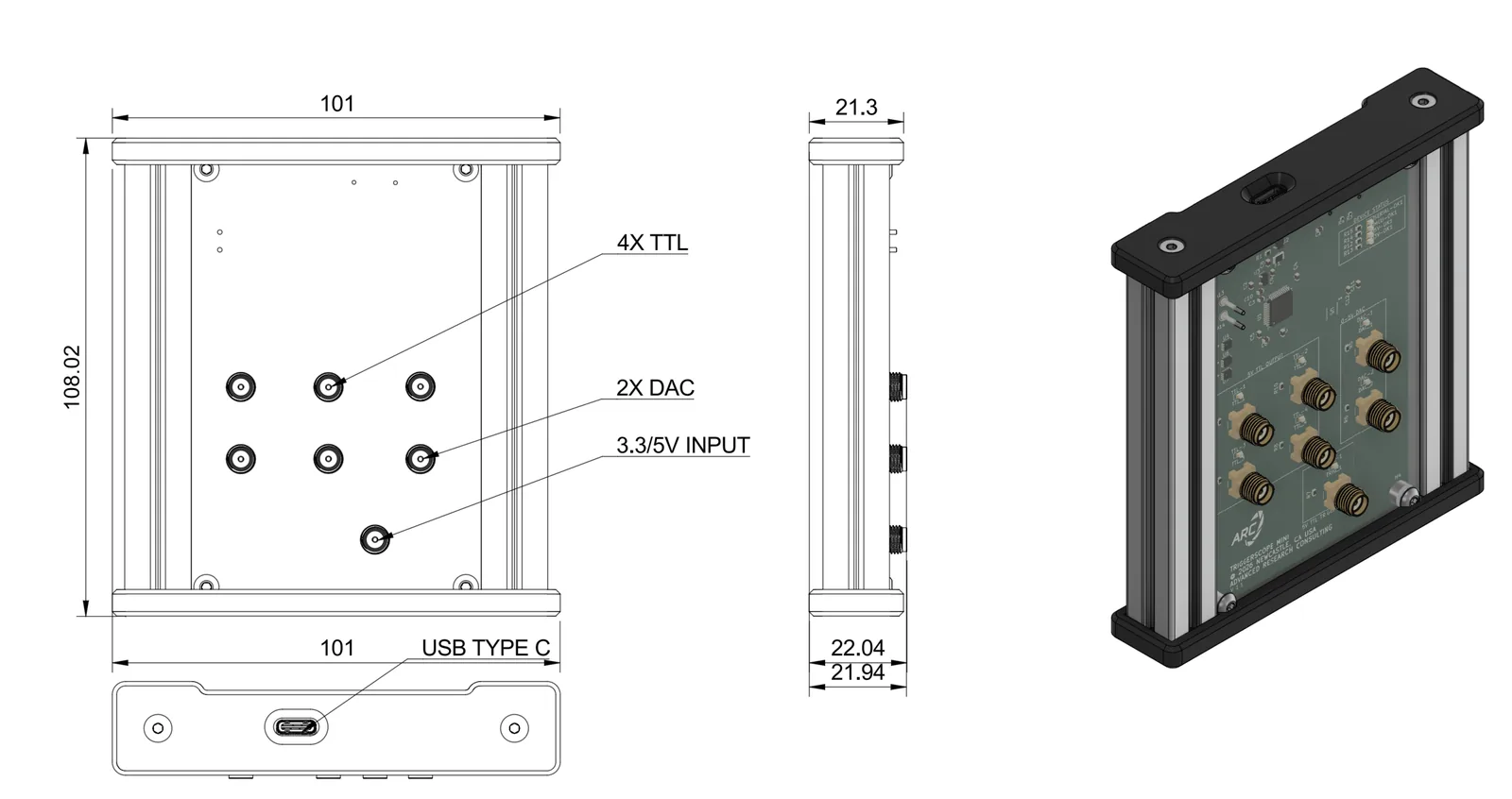

| Dimensions | 101 × 108 × 22 mm |
Some older Windows 7 machines may require a serial driver.
